Belting of the SX20 -Yachtline- on the x19v

In the following, we would like to show you the correct strapping of the SX20 on the x19v aluminum trailer. Correct strapping is essential, so please always observe the following instructions.

Correctly and securely strapped SX20 -Yachtline-

BUG

HECK

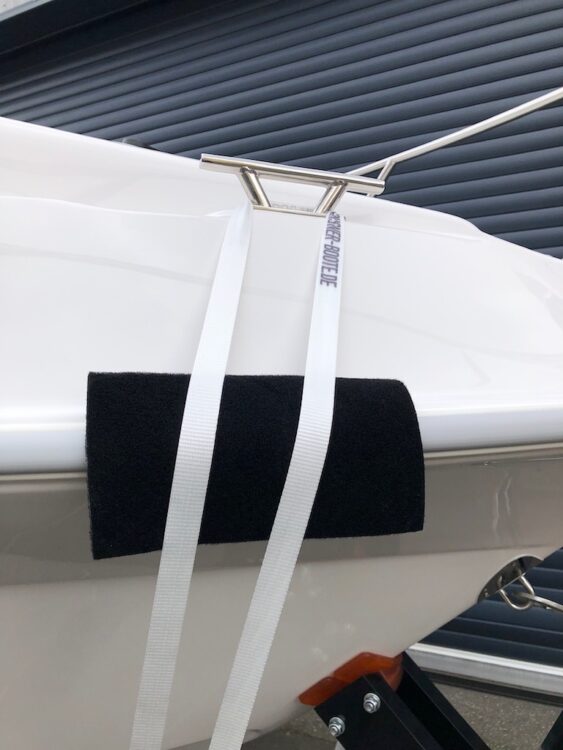

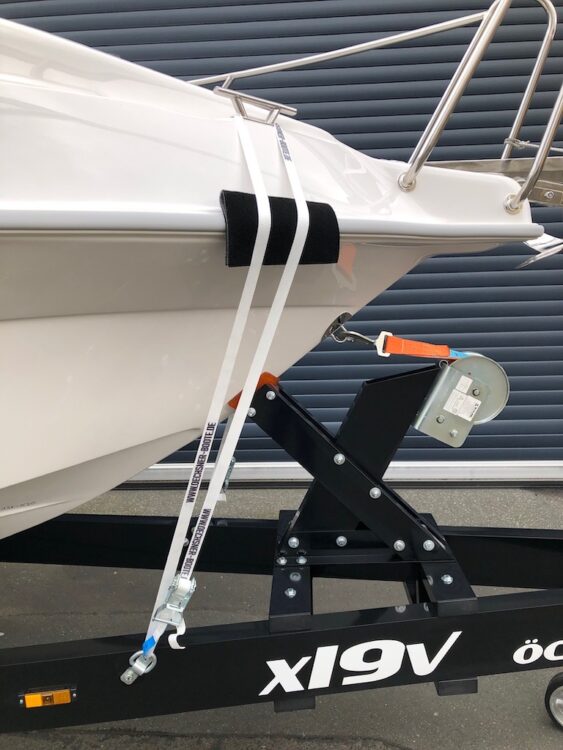

Correct position of the tensioning straps on the bow

Please ensure that the lock/ratchet is positioned so that it does not touch the boat or trailer!

– Place the tensioning strap around the cleat as shown
– Clamp the carpet between the tensioning strap and the strip to protect the scuff plate

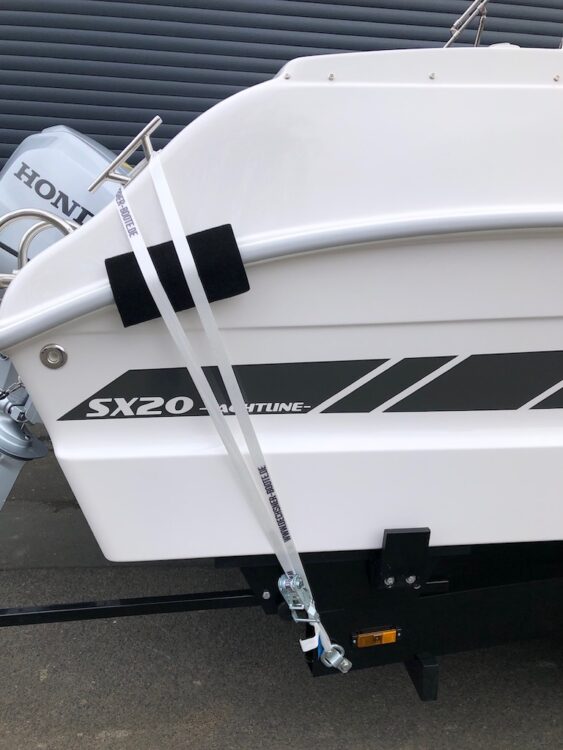

Correct position of the tensioning straps at the rear

Please ensure that the lock/ratchet is positioned so that it does not touch the boat or trailer!

– Place the tensioning strap around the cleat as shown
– Clamp the carpet between the tensioning strap and the strip to protect the scuff plate

Important:

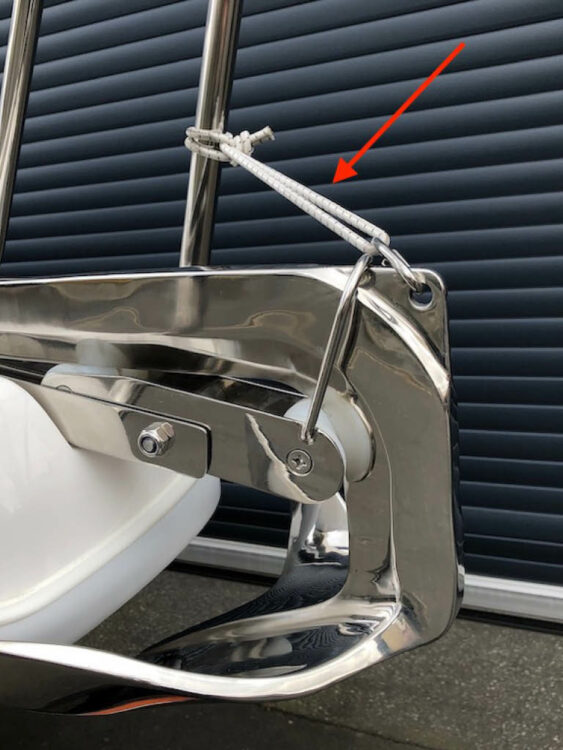

Attach anchor securing device

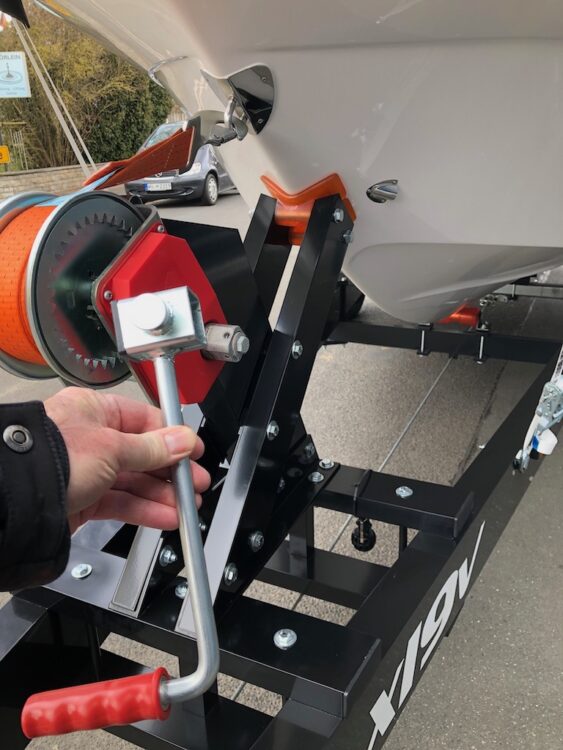

Do not forget:
Remove the crank after use

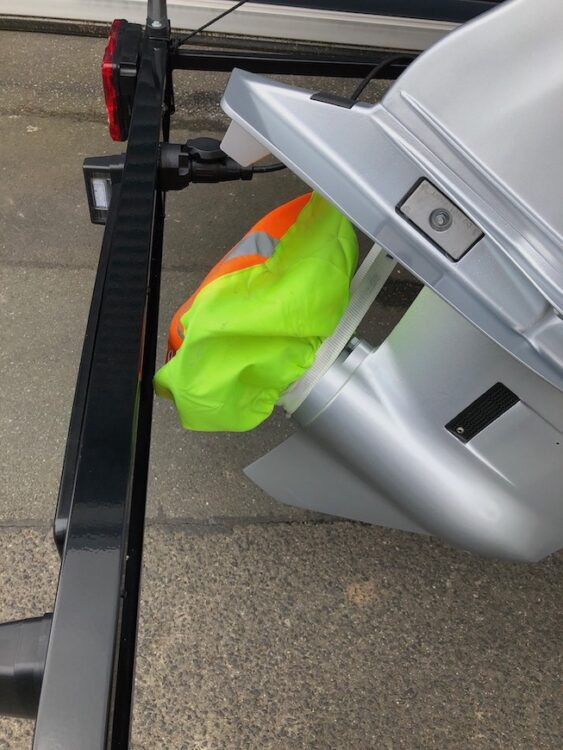

– Attaching the propeller bag
– Important: ensure sufficient distance between the light strip and the propeller

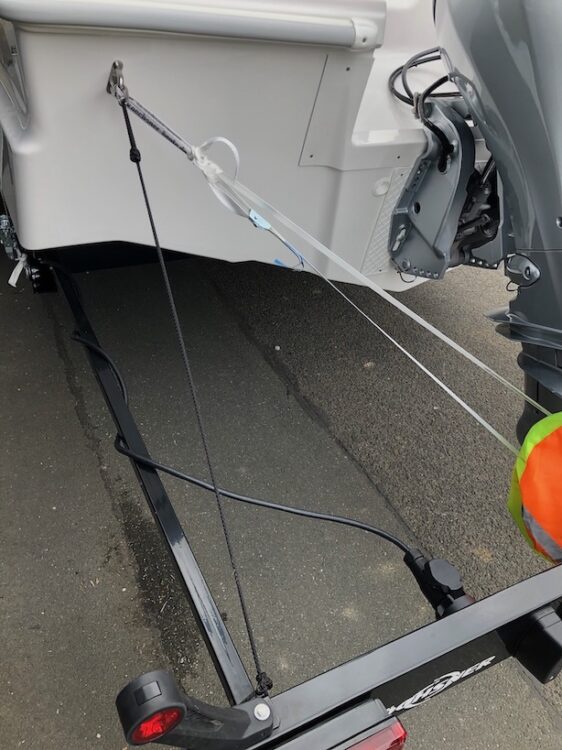

Additional fuse for the light strip (black) and motor (white) Attach

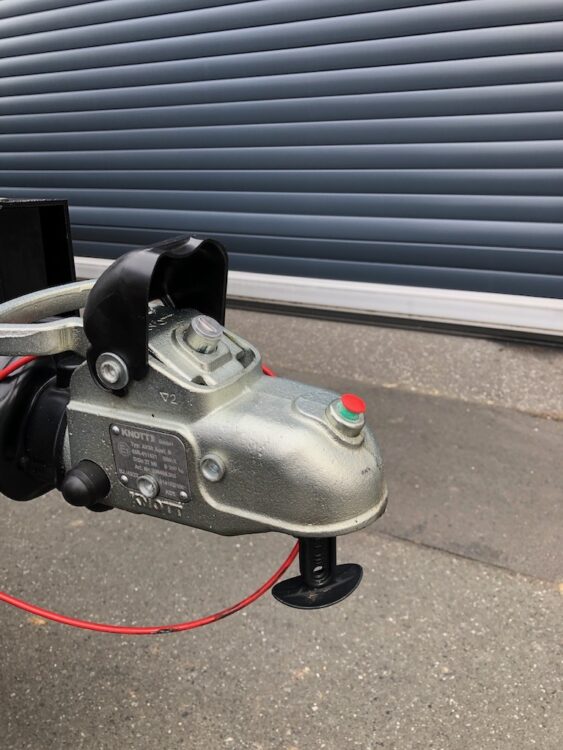

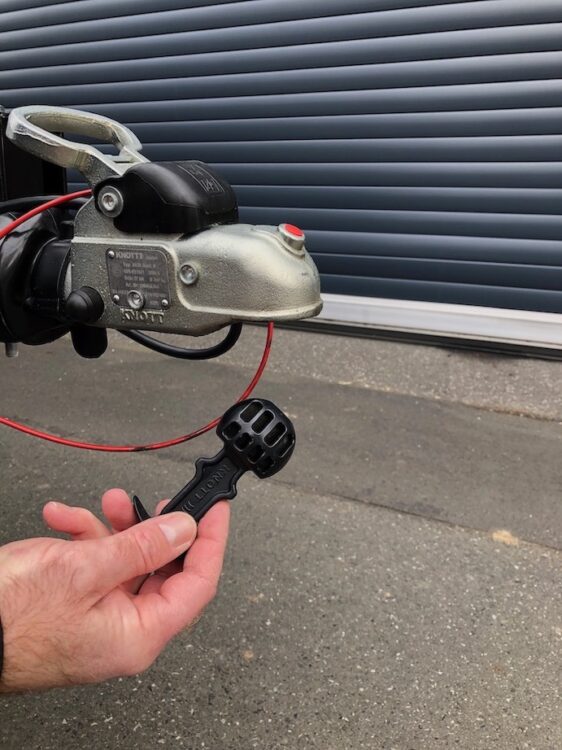

Anti-theft device
Insert the ball into the ball clutch.

Important:
The trailer must be locked.
